Re: Сумерки
... обратимся к учебнику?
Twilight

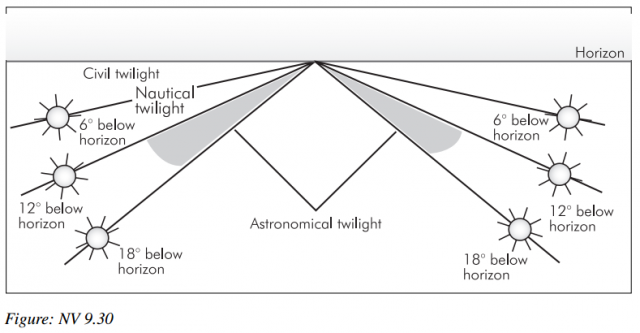

The period of incomplete light when the sun is not too far below the horizon is called twilight. It is considered to commence in the morning, or end in the evening, when the sun’s centre is 18°below the horizon. Twilight is divided into three stages: The period between sunrise or sunset and the sun’s centre being 6°below the horizon on its way up or down is called Civil Twilight. In this period everyday tasks are just possible without artificial light, and only the brightest planets will be seen.
The next stage of Twilight is called Nautical Twilight. That’s when the sun’s centre is between 6°and 12°below the horizon, and the degree of illumination when the sun is 12°below the horizon is such that general outlines of ground objects are just visible and the bright stars are visible.
Finally, when the sun’s centre is between 12°and 18°below the horizon Astro-nomical Twilight is said to occur. When the sun’s centre is 18°below the horizon, it is completely dark.

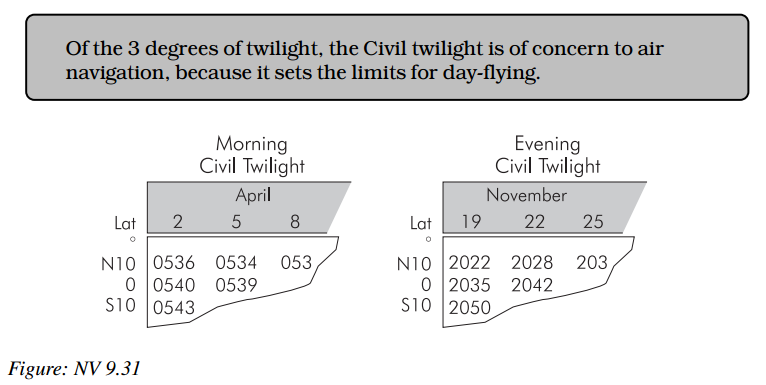

The first of these stages; the Civil Twilight, is the one we’re concerned with. A table in exactly the same form as the sunrise and sunset table has been worked out, so that the LMT of end of evening civil twilight (EECT) and beginning of morning civil twilight (BMCT) can be obtained in the same way as the SR and SS.
The tabulated time of end of evening civil twilight and beginning of morning civil twilight is LMT at the Prime Meridian. The difference in longitude must be con-verted to time and added to the tabulated time when longitude is Westerly, and subtracted from the tabulated time when longitude is Easterly.
Just as in high latitudes when there are occasions of 24 hours daylight or dark-ness, there are occasions where twilight lasts all day or night. The following sym-bol indicates the occurrence of this condition:
Variation of Twilight with Latitude

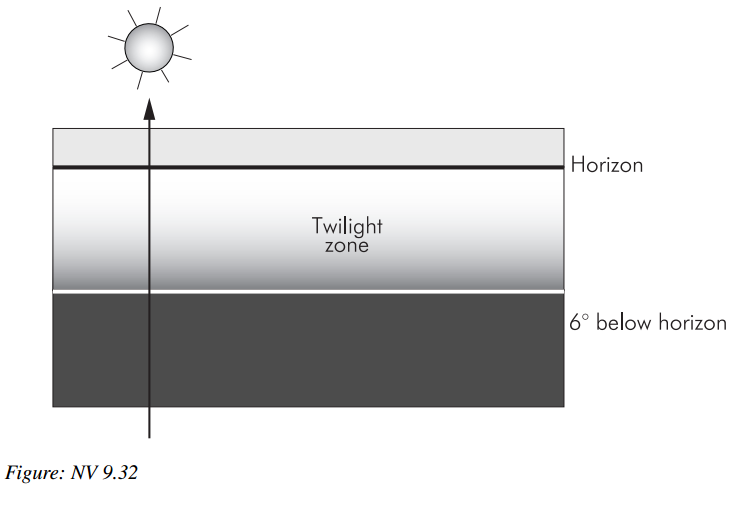

In the Tropics the sun rises and sets at almost 90 degrees to the horizon. This is shown in figure NV 9.32. The period of twilight is quite short because the sun is travelling the shortest way through the twilight zone, making the onset of daylight or night quite rapid.

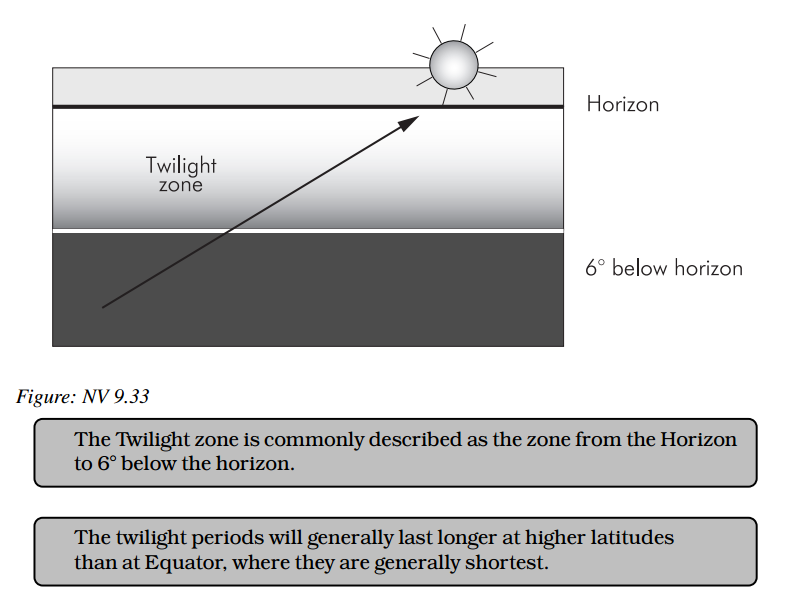

In the higher latitudes towards the North and South poles the Sun does not travel the shortest way through the zone and the period of twilight is much longer, so that the onset of daylight or darkness is far more gradual than in the tropics, as shown in figure NV 9.33.
The diagram below shows two observers, Z and Z1, their respective horizons, VH and V1H1, and associated twilight belts. The Sun, declination d°crosses observ-ers Z1’s twilight zone from A to B, the duration of twilight being A1B1. For ob-server Z, the sun crosses from C to D giving duration C1D1. As can be seen on the diagram, the duration A1B1 is greater than C1D1, and therefore the duration of twilight increases with increased latitude.
Страница 9-27 из (это учебник из шведской или норвежской школы, весьма рекомендую их материалы)
Twilight
The period of incomplete light when the sun is not too far below the horizon is called twilight. It is considered to commence in the morning, or end in the evening, when the sun’s centre is 18°below the horizon. Twilight is divided into three stages: The period between sunrise or sunset and the sun’s centre being 6°below the horizon on its way up or down is called Civil Twilight. In this period everyday tasks are just possible without artificial light, and only the brightest planets will be seen.
The next stage of Twilight is called Nautical Twilight. That’s when the sun’s centre is between 6°and 12°below the horizon, and the degree of illumination when the sun is 12°below the horizon is such that general outlines of ground objects are just visible and the bright stars are visible.
Finally, when the sun’s centre is between 12°and 18°below the horizon Astro-nomical Twilight is said to occur. When the sun’s centre is 18°below the horizon, it is completely dark.
The first of these stages; the Civil Twilight, is the one we’re concerned with. A table in exactly the same form as the sunrise and sunset table has been worked out, so that the LMT of end of evening civil twilight (EECT) and beginning of morning civil twilight (BMCT) can be obtained in the same way as the SR and SS.
The tabulated time of end of evening civil twilight and beginning of morning civil twilight is LMT at the Prime Meridian. The difference in longitude must be con-verted to time and added to the tabulated time when longitude is Westerly, and subtracted from the tabulated time when longitude is Easterly.
Just as in high latitudes when there are occasions of 24 hours daylight or dark-ness, there are occasions where twilight lasts all day or night. The following sym-bol indicates the occurrence of this condition:
Variation of Twilight with Latitude
In the Tropics the sun rises and sets at almost 90 degrees to the horizon. This is shown in figure NV 9.32. The period of twilight is quite short because the sun is travelling the shortest way through the twilight zone, making the onset of daylight or night quite rapid.
In the higher latitudes towards the North and South poles the Sun does not travel the shortest way through the zone and the period of twilight is much longer, so that the onset of daylight or darkness is far more gradual than in the tropics, as shown in figure NV 9.33.
The diagram below shows two observers, Z and Z1, their respective horizons, VH and V1H1, and associated twilight belts. The Sun, declination d°crosses observ-ers Z1’s twilight zone from A to B, the duration of twilight being A1B1. For ob-server Z, the sun crosses from C to D giving duration C1D1. As can be seen on the diagram, the duration A1B1 is greater than C1D1, and therefore the duration of twilight increases with increased latitude.
Страница 9-27 из (это учебник из шведской или норвежской школы, весьма рекомендую их материалы)
~
:wq
:wq
Re: Сумерки
Прекрасно. Здесь у всех 4й уровень)
Re: Сумерки
А проще всего здесь: http://voshod-solnca.ru/%D0%9C%D0%BE%D1 ... D0%B0.html
Вежливость - прежде всего
- rezdm
- SAONовец со стажем
- Сообщения: 603
- Зарегистрирован: 02 ноя 2012, 14:53
- Member of AOPA: No
- Откуда: Zug, Switzerland
- Контактная информация:
Re: Сумерки
Кстати сказать, официальные времена: AIP Россия, книга 4 ( http://aviadocs.net/AIP/aip1303b4_ru.pdf , осторожно 900 с гаком мб )
стр. GEN 2-7.5
стр. GEN 2-7.5
~
:wq
:wq
Re: Сумерки
Спасибо всем за ответы.
Тем не менее - по сути вопроса...
Конец гражданских вечерних сумерек - это и есть наступление темноты?
Есть сборник еще советский, в котором про сумерки не сказано ничего. Только рассвет, восход, заход, темнота.
Им пользуемся.
Так вот могу ли я считать периоды рассвет-восход и заход-темнота сумерками гражданскими.
Или эти периоды могут быть и навигационными сумерками?
Тем не менее - по сути вопроса...
Конец гражданских вечерних сумерек - это и есть наступление темноты?
Есть сборник еще советский, в котором про сумерки не сказано ничего. Только рассвет, восход, заход, темнота.
Им пользуемся.
Так вот могу ли я считать периоды рассвет-восход и заход-темнота сумерками гражданскими.
Или эти периоды могут быть и навигационными сумерками?
Re: Сумерки
Про градусы - 6° это 1/60 суточного оборота Земли вокруг своей оси, соотв. 24 часа / 60 = .4 часа, = 24 мин.AER писал(а):Я правильно понял:
начало утренных гражданских скмерек соответствует рассвету,
конец вечерних гражданских сумерек - наступлению темноты?
С этими градусами не разберусь никак...
(есть некоторое упрощение, но оно не сильно влияет на общую картину)
Соотв. гражданские начинаются за 24 мин до восхода солнца, и заканчиваются через 24 после захода.
- rezdm
- SAONовец со стажем
- Сообщения: 603
- Зарегистрирован: 02 ноя 2012, 14:53
- Member of AOPA: No
- Откуда: Zug, Switzerland
- Контактная информация:
Re: Сумерки
а) до/после рассвета/заката полчаса, как выше написал jp8000AER писал(а):Так вот могу ли я считать периоды рассвет-восход и заход-темнота сумерками гражданскими.
(только с поправкой на широту -- чем ближе к экватору, тем сумереки короче, пример Москва-Туда-Старый Оскол
Москва:
04:12—04:51 — civil twilight = 39 минут
04:51—04:54 — sunrise
18:11—18:15 — sunset
18:15—18:53 — civil twilight
Тула:
04:16—04:53 — civil twilight = 37 минут
04:53—04:57 — sunrise
18:09—18:13 — sunset
18:13—18:50 — civil twilight
Старый Оскол:
04:21—04:55 — civil twilight = 34 минуты
04:55—04:59 — sunrise
18:04—18:08 — sunset
18:08—18:42 — civil twilight
)
б) воспользоваться AIP соответствующей страны
Вцелом, для всяких "солнечных времён" рекомендую http://www.suncalc.net (в т.ч. полезно для фотографии, отслеживать, откуда в нужное время свет падает)
~
:wq
:wq
Re: Сумерки
Василь, Умаров до сих пор запрещает ночные полеты по ПВП в Татарстане?Jantar писал(а):Проще говоря, день стал длиннее на сумерки.
Когда...?
Re: Сумерки
Дополню свой пост выше.
Да, разумеется зависит от широты места. Комметарий был только про градусы. Для простоты обычно в части литературы пишется что гражданские - 30 минут.
В принципе вот здесь:
http://www.spectralcalc.com/solar_calcu ... sition.php
есть хороший калькулятор на данную тему. Там все понятно, но если нужен перевод - переведу здесь (Гражданские сумарки - civil twilight, Begin - начало, End - конец).
Да, разумеется зависит от широты места. Комметарий был только про градусы. Для простоты обычно в части литературы пишется что гражданские - 30 минут.
В принципе вот здесь:
http://www.spectralcalc.com/solar_calcu ... sition.php
есть хороший калькулятор на данную тему. Там все понятно, но если нужен перевод - переведу здесь (Гражданские сумарки - civil twilight, Begin - начало, End - конец).
-
- Гуру
- Сообщения: 1943
- Зарегистрирован: 23 окт 2007, 20:05
- Member of AOPA: Yes
- Откуда: Казань
- Контактная информация:
Re: Сумерки
Нет, так вроде и не запрещал! Масска народу отлетало у нас программу ночь ПВП без проблем и вопросов как со стороны Росавиации, Надзора и ОрВД, за пару минут до начала ночи взлетаем с Куркачей, а далее в МАК тренировка на ВПП в том числе и замкнутый маршрут, как правило вдоль Волги.kvsov писал(а):Василь, Умаров до сих пор запрещает ночные полеты по ПВП в Татарстане?Jantar писал(а):Проще говоря, день стал длиннее на сумерки.
